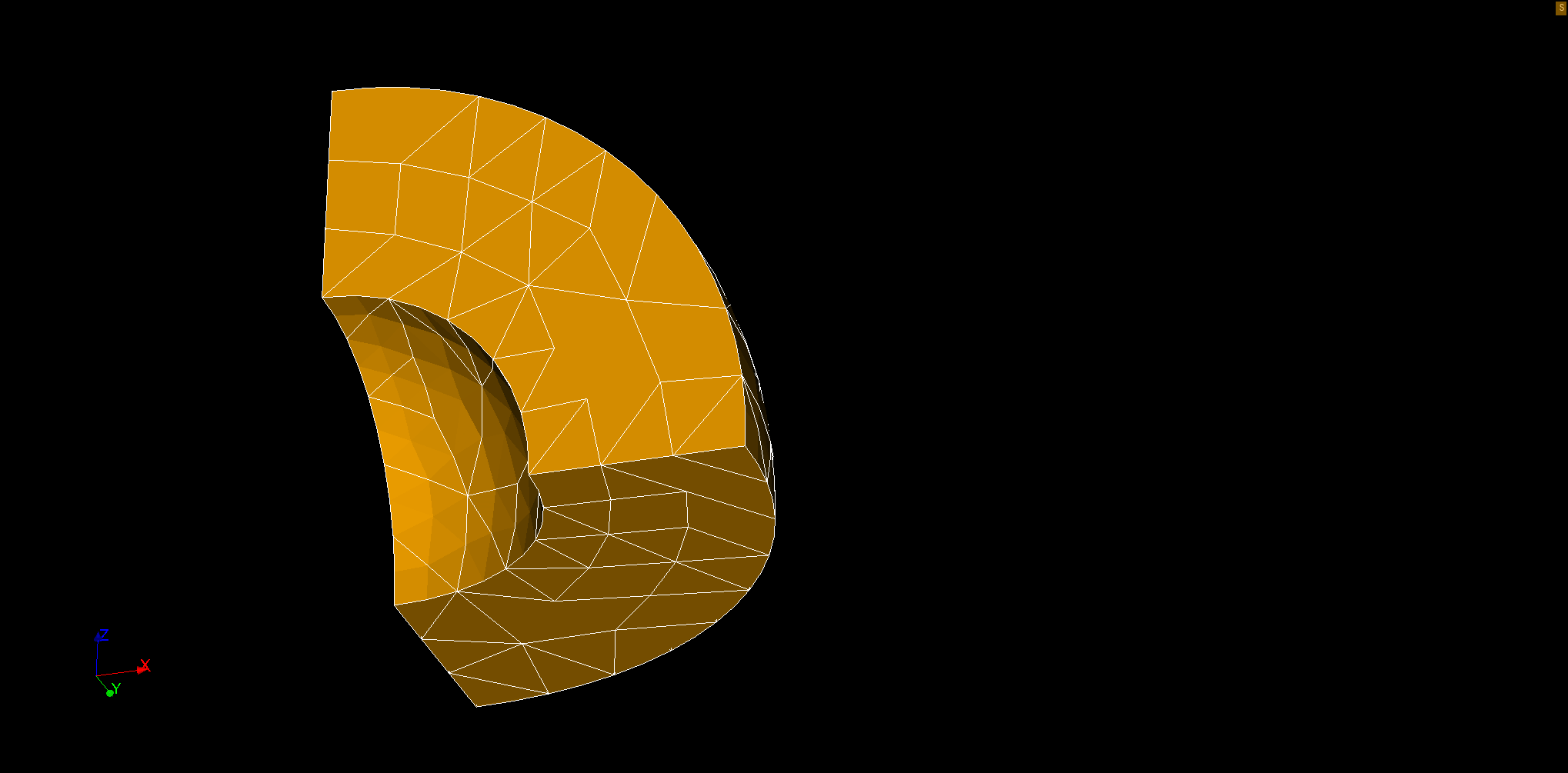

Hi, I notice that salome 9.15 does not show volume element edges correct. At least my installation does not.. Some edges are missing. See figure below and the file attached.
Volume_edges.hdf (187.5 KB)
-Thank you for the good work with the program!
BR/Micke
For information this issue is not present in version 9.14.
BR/Micke
Is there a work around or setting that can fix this? Or will it be fixed in v9.16?
BR/micke
What happens if you use shrinkage on?
Tried right mouse button + Shrink coef: 10%, 75% and 100%. It did nothing on the volume elements. Is that what you meant?
it is a workaround and not a solution:

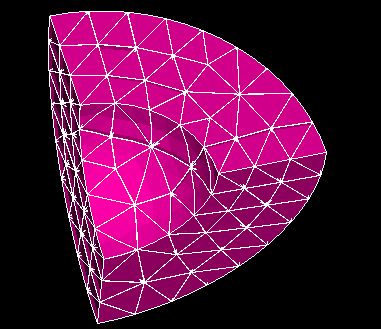

left click, display entities: only volumes, left click again, display mode: shirinkage, left click again properties shrink coef 99
OK, thank you!
Yes, you found a work around. But not so convenient if one wants to display both volumes and some of the face groups. Easier to use v9.14 to create pictures then. Hopefully this is fixed in next version!
BR/Micke
you can also display face groups, i only remove everything else for make it more clean.
nevertheless obviously it should be fixed. i would recommend to make an issue in the smesh git.
