Hello All
Hope all is well in your part of the world.

Salome came recommented from ElmerFEM. My aim with Salome is to create groups.

How can I select just the triangular faces that I have within the selection box?

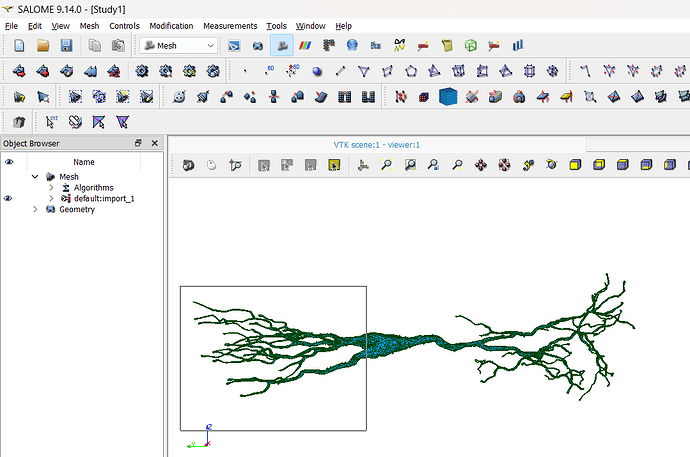

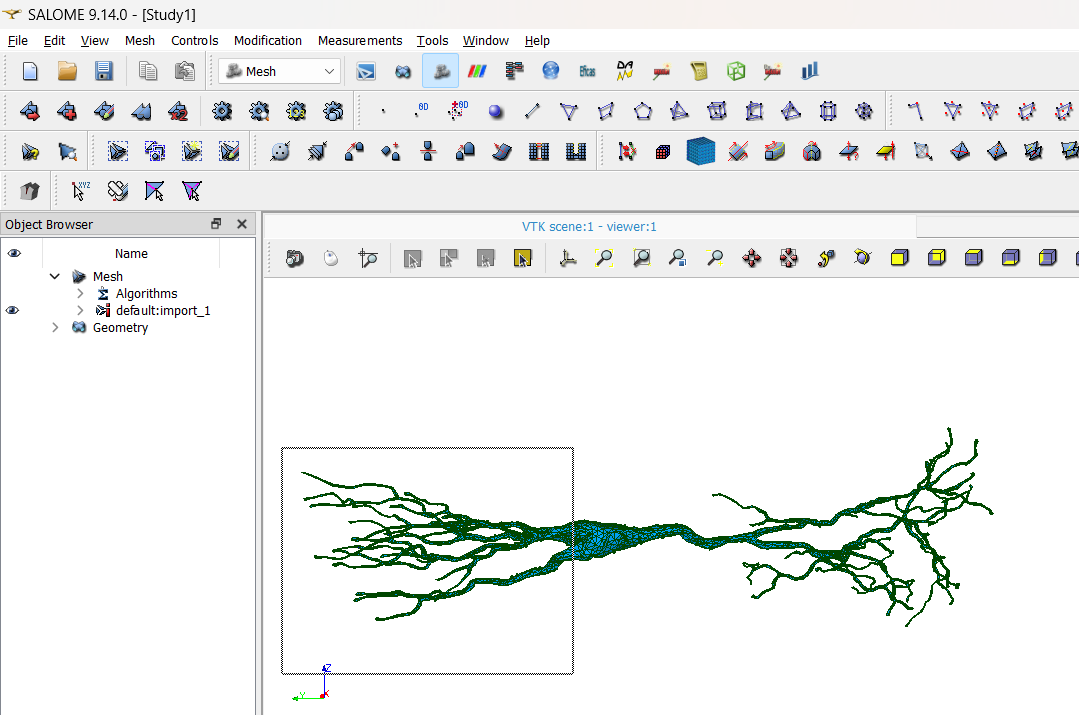

image1079×715 69.3 KB

  • Would I use Range of IDs? But what are the IDs within the selection?
    Or any other filter?

Thank you & Regards,
love the work you all are doing here,
All the best!

2

Hello,
You can use a filter call “Belong to Geom”:

  • Go to GEOM to create a box that will contain the part you want to select
  • Go back to SMESH:
    • Create Group, select your mesh
    • Select the elements type = Face
    • Group Type = Group on filter
    • click the “Set Filter” button and select the box created in GEOM
3

This is very helpful Fred.
Manual selection worked without use of filters, which was great.

Thanks
