Is it possible to show number of elements per edge in mesh module?

Use of the platform
1

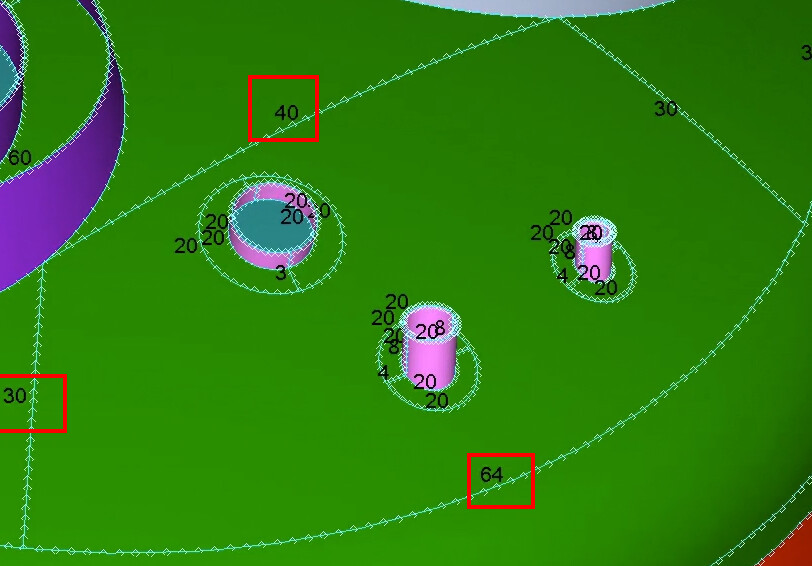

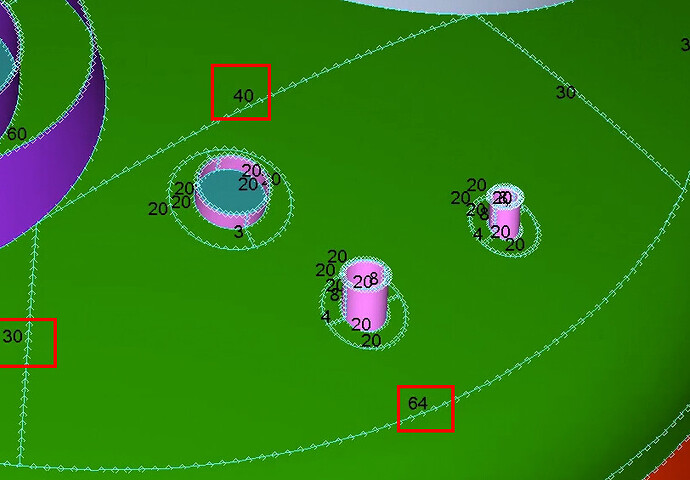

I’m assigning 1D hypothesis edge by edge and would be very helpful if I could actually see the number of elements per edge like in Femap. Is it possible in Salome?

image812×566 87 KB

2

If you grouped the edge in the GEOM module, it will appear under ‘Groups of Edges’ in Mesh_1 after meshing. By selecting it and clicking info, you should be able to see the number of elements.

N469
